K20 Solid Carbide Square Bar , Tungsten Carbide Flats YD201 / YG6 / YG8 Mark
Product Details:
| Place of Origin: | Zhuzhou，Hunan，China（mainland） |
| Brand Name: | Gold Sword |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | Carton packaging 15 kg per carton |
| Delivery Time: | 25 days |
| Payment Terms: | TT |
|
Detail Information |
|||
| Usage: | Wood Cutting | Size: | Customized |
|---|---|---|---|
| Color: | Grey | Product Name: | Cemented Carbide Strips |
| Grade: | YG6X ZK30UF ZK30SF Etc | ||
| High Light: | tungsten carbide square bar,rectangular carbide blanks |
||
Product Description

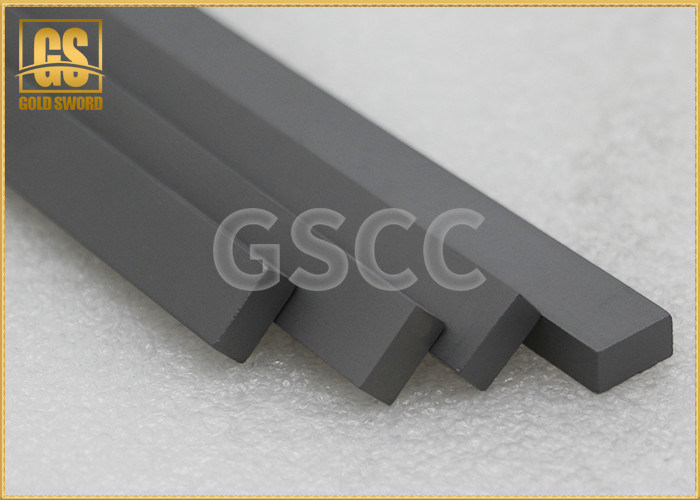

Tungsten Carbide Ground Finish Strips
The main composition of tungsten carbide bars or strips is tungsten carbide powders and cobalt powders .With its wear resistant and corrosion resistant ability , tungsten carbide nowadays is widely used in many areas such as : cutting tools , moulds , oil and automobile industry etc .
Tungsten Carbide Ground Finish Strips and bars is used as the cutter for the TCT woodworking knives for cutting all kinds of original wood , hard wood , HDF, MDF , plywood , particle board , laminated board, composite material ,grass, aluminum and metals . It can give much more excellent performance than HSS .
| GSGrade | ISO Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPα) | Grain Size | Performance & Application Recommended |
| RX10 | K20 | 14.6-15.0 | 90~90.5 | 2200~2400 | Medium | High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys. |
| RX20 | K30 | 14.6-15.0 | 90~90.5 | 2600~2800 | Fine | High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer. |
| RX10T | K10 | 14.6-15.0 | 92.5~93 | 1800-2000 | Ultrafine | High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering. |
| AB10 | K40 | 13.8-14.2 | 87.5~88 | 2800~3000 | Coarse | High toughness, difficult to break tooth. Special used for finger jointing tool. |
Common specification sheet
| (T) | (W) | (L) |
| mm | mm | mm |
| 1~3 | 3.5 | 50~320 |
| 1~4 | 4 | 50~320 |
| 1~5 | 5 | 50~320 |
| 1~6 | 6 | 50~320 |
| 1~7 | 7 | 50~320 |
| 1~8 | 8 | 50~320 |
| 1~9 | 9 | 50~320 |
| 1~10 | 10 | 50~320 |
| 1~11 | 11 | 50~320 |
| 1~12 | 12 | 50~320 |
| 1~13 | 13 | 50~320 |
| 1~14 | 14 | 50~320 |
| 1~15 | 15 | 50~320 |
| 1~16 | 16 | 50~320 |
| 1~17 | 17 | 50~320 |
| 1~18 | 18 | 50~320 |
| 1~18 | 19 | 50~320 |
| 1~18 | 20 | 50~320 |
| (T) | (W) | (L) |
| mm | mm | mm |
| 1~18 | 21 | 50~320 |
| 1~18 | 22 | 50~320 |
| 1~18 | 24 | 50~320 |
| 1~18 | 25 | 50~320 |
| 1~18 | 26 | 50~320 |
| 1~18 | 28 | 50~320 |
| 1~18 | 30 | 50~320 |
| 1~18 | 32 | 50~320 |
| 1~18 | 35 | 50~320 |
| 1~18 | 40 | 50~320 |
| 1~18 | 30 | 50~320 |
| 1~18 | 32 | 50~320 |
| 1~18 | 35 | 50~320 |
| 1~18 | 40 | 50~320 |
| 1~18 | 45 | 50~320 |
| 1~18 | 50 | 50~320 |
| 1~18 | 55 | 50~320 |
| 1~18 | 60 | 50~320 |
