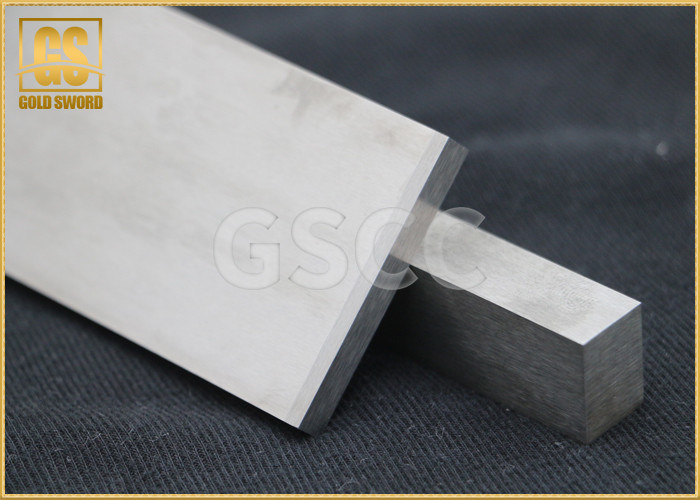

P20 Tungsten Carbide Flat Stock Chemically Coated Grade Easy Storage

P20 Tungsten Carbide Flat Stock Chemically Coated Grade Easy Storage

Product Details:

Place of Origin: Zhuzhou,Hunan,China(mainland)
Brand Name: Gold Sword

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Carton packaging 15 kg per carton
Delivery Time: 25 days
Payment Terms: TT
Get Best Price Contact Now

Detail Information

Type: Tool Parts Size: Customized
Material: Virgin Tungsten Carbide Item: Tungsten Carbide Sheet
High Light:

tungsten carbide armor plate

,

tungsten carbide block

Product Description

Tungsten steel is formed by pressing the powder into a billet, heating it to a certain temperature (sintering temperature) in a sintering furnace, and maintaining it for a certain period of time (heating time), and then cooling it down to obtain a tungsten steel material having desired properties.
The four basic stages of the tungsten steel sintering process:
Removal of the forming agent and the pre-firing stage, in which the sintered body undergoes the following changes


The removal of the molding agent, as the temperature increases, the molding agent gradually decomposes or vaporizes at the initial stage of sintering, thereby eliminating the sintered body. At the same time, the molding agent more or less carbon is added to the sintered body, and the carbon addition amount will follow the molding agent. The type, quantity, and sintering process vary.
The surface oxide of the powder is reduced. At the sintering temperature, hydrogen can reduce the oxides of cobalt and tungsten. If the molding agent is removed by vacuum and sintered, the carbon-oxygen reaction is not strong. The contact stress between the powder particles is gradually eliminated, the bonded metal powder begins to recover and recrystallize, surface diffusion begins to occur, and the strength of the compact is improved.





Coating blade mark and use recommended (B04)



YBC151 High wear-resistant matrix and ultra-thick composite coating for steel finishing.


YBC251 A tough base with good edge safety and a coating of MT-TiCN for semi-finishing of steel.

YBC351 The highly plastic matrix an the composite thick coating are suitable for roughing of steel.

YBM151 Suitable for finishing and semi-finishing of stainless steel.

YBM251 Suitable for semi-finishing of stainless steel.

YBM351 Suitable for rough finishing of stainless steel.

YBD052 The chemical ultra-thick coating combines with a hard matrix to provide excellent wear resistance in high-speed dry cutting of grey cast iron.

YBD102 Chemically coated grade for high speed cutting of ball cast iron.

YBD152 Good anti-flaking, suitable formedium- and high-speed turning in cast iron, and can withstand slight interrupted cutting at medium speed.

YBD252 Suitable for turning in medium and low speed wet milling and intermittent conditions of cast iron with toughness requirements.




STB-1



TYPE SPECIFICATION TPYE SPECIFICATION
T(mm) W(mm) L(mm) T(mm) W(mm) L(mm)
STB12 0.8 1.6 25.4 STB26A 1.6 4.8 25.4
STB13 1.2 2.4 25.4 STB26C 1.6 4.8 76.2
STB13A 1.2 2.4 20.6 STB28A 1.6 6.4 25.4
STB14 2.0 3.2 28.6 STB28B 1.6 6.4 31.8
STB206 1.6 4.8 152.4 STB28D 1.6 6.4 76.2
STB208 1.6 6.4 152.4 STB310A 2.4 7.9 50.8
STB210 1.6 7.9 152.4 STB310B 2.4 7.9 76.2
STB212 1.6 9.5 152.4 STB310C 2.4 7.9 127
STB216 1.6 12.7 152.4 STB312 2.4 9.5 127
STB220 1.6 15.9 152.4 STB316 2.4 12.7 152.4
STB224 1.6 19.1 152.4 STB320 2.4 15.9 152.4
STB228 1.6 22.2 152.4 STB324 2.4 19.1 152.4
STB24A 1.6 3.2 25.4 STB328 2.4 22.2 152.4
STB24B 1.6 3.2 76.2 STB332 2.4 25.4 152.4
STB24C 1.6 3.2 31.8 STB336 2.4 28.7 152.4


STB-2



TYPE SPECIFICATION TPYE SPECIFICATION
T(mm) W(mm) L(mm) T(mm) W(mm) L(mm)
STB34 2.4 3.2 127 STB416 3.2 12.7 152.4
STB340 2.4 31.8 152.4 STB416A 3.2 12.7 25.4
STB348 2.4 38.1 152.4 STB416B 3.2 12.7 38.1
STB36 2.4 4.8 28.6 STB416C 3.2 12.7 76.2
STB36A 2.4 4.8 31.8 STB420 3.2 15.9 152.4
STB38A 2.4 6.4 25.4 STB424 3.2 19.1 152.4
STB38B 2.4 6.4 38.1 STB428 3.2 22.2 152.4
STB38D 2.4 6.4 127 STB432 3.2 25.4 152.4
STB410 3.2 7.9 152.4 STB436 3.2 28.7 152.4
STB410A 3.2 7.9 38.1 STB440 3.2 31.8 152.4
STB410B 3.2 7.9 76.2 STB448 3.2 38.1 152.4
STB412A 3.2 9.5 50.8 STB46 3.2 4.8 152.4
STB412B 3.2 9.5 76.2 STB48A 3.2 6.4 25.4
STB412C 3.2 9.5 152.4 STB48B 3.2 6.4 31.8
STB412D 3.2 9.5 25.4 STB48C 3.2 6.4 57.2



STB-3



TYPE SPECIFICATION TPYE SPECIFICATION
T(mm) W(mm) L(mm) T(mm) W(mm) L(mm)
STB48D 3.2 6.4 76.2 STB628 4.8 22.2 152.4
STB48E 3.2 6.4 152.4 STB632 4.8 25.4 152.4
STB510 4.0 7.9 152.4 STB636 4.8 28.7 152.4
STB512 4.0 9.5 152.4 STB640 4.8 31.8 152.4
STB516 4.0 12.7 152.4 STB648 4.8 38.1 152.4
STB520 4.0 15.9 152.4 STB68 4.8 6.4 152.4
STB524 4.0 19.1 152.4 STB68A 4.8 6.4 76.2
STB528 4.0 22.2 152.4 STB812 6.4 9.5 152.4
STB532 4.0 25.4 152.4 STB812A 6.4 9.5 76.2
STB536 4.0 28.7 152.4 STB816 6.4 12.7 152.4
STB540 4.0 31.8 152.4 STB816A 6.4 12.7 76.2
STB610 4.8 7.9 152.4 STB820 6.4 15.9 152.4
STB610A 4.8 7.9 76.2 STB820A 6.4 15.9 76.2
STB612 4.8 9.5 152.4 STB824 6.4 19.1 152.4
STB612A 4.8 9.5 76.2 STB824A 6.4 19.1 76.2
STB616 4.8 12.7 152.4 STB828 6.4 22.2 152.4
STB616A 4.8 12.7 76.2 STB832 6.4 25.4 152.4
STB620 4.8 15.9 152.4 STB836 6.4 28.7 152.4
STB620A 4.8 15.9 76.2 STB840 6.4 31.8 152.4
STB624 4.8 19.1 152.4 STB848 6.4 38.1

152.4



Square bar



SPECIFICATION SPECIFICATION
T(mm) W(mm) L(mm) T(mm) W(mm) L(mm)
4 4 50~320 1~3 4 50~320
5 5 5
6 6 6
7 7 7
8 8 8
9 9 9
10 10 10
11 11 11
12 12 12
13 13 13
14 14 14
15 15 15
16 16 16
17 17 17
18 18 18
