• Wood Working Tungsten Carbide Square Bar With Strong Anti Corrosion Fine Grain Size
Wood Working Tungsten Carbide Square Bar With Strong Anti Corrosion Fine Grain Size

Wood Working Tungsten Carbide Square Bar With Strong Anti Corrosion Fine Grain Size

Product Details:

Place of Origin: Zhuzhou,Hunan,China(mainland)
Brand Name: Gold Sword
Model Number: Tungsten Carbide Blanks

Payment & Shipping Terms:

Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: Carton packaging 15 kg per carton
Delivery Time: 25 days
Payment Terms: TT
Supply Ability: 80000 pcs per month
Get Best Price Contact Now

Detail Information

Name: Tungsten Carbide Blanks Color: Grey
Product Name: Cemented Carbide Strips Usage: Wood Cutting
Size: Customized Feature: Strong Anti Corrosion
High Light:

tungsten carbide square bar

,

rectangular carbide blanks

Product Description

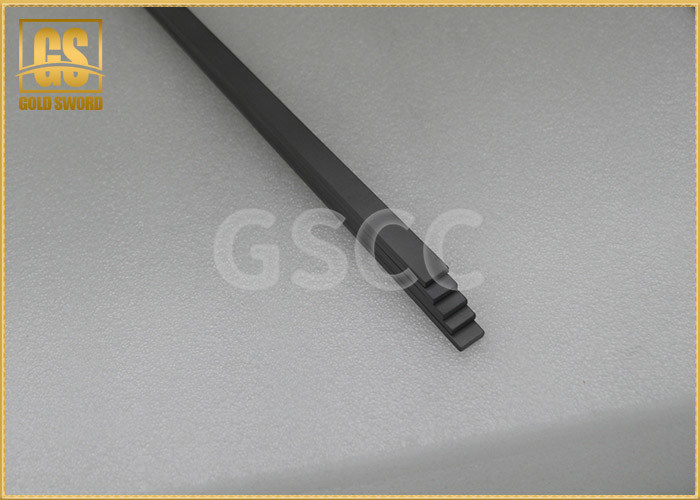

Wood Working Tungsten Carbide Square Bar With Strong Anti Corrosion Fine Grain Size



Applications of Tungsten Carbide Square Bar



Tungsten Carbide Square Bar is a highly efficient and green material, which features qualities of stainless steel: Corrosion resistance, oxidation resistance, wear resistance, bonding proof and acid-base resistance; And ensures its good strength, toughness, bending and stretching, impact resistance.



Tungsten Carbide Square Bar is used for woodworking cast iron cutting tool. It can be used in many field such as woodworking, machining of refractory alloys, stainless steel, high manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar, etc



GSGrade ISO Grade Density (g/cm3) Hardness (HRA) T.R.S (MPα) Grain Size Performance & Application Recommended
RX10 K20 14.6-15.0 90~90.5 2200~2400 Medium High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys.
RX20 K30 14.6-15.0 90~90.5 2600~2800 Fine High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer.
RX10T K10 14.6-15.0 92.5~93 1800-2000 Ultrafine High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering.
AB10 K40 13.8-14.2 87.5~88 2800~3000 Coarse High toughness, difficult to break tooth. Special used for finger jointing tool.








Common specification sheet



(T) (W) (L)
mm mm mm
1~3 3.5 50~320
1~4 4 50~320
1~5 5 50~320
1~6 6 50~320
1~7 7 50~320
1~8 8 50~320
1~9 9 50~320
1~10 10 50~320
1~11 11 50~320
1~12 12 50~320
1~13 13 50~320
1~14 14 50~320
1~15 15 50~320
1~16 16 50~320
1~17 17 50~320
1~18 18 50~320
1~18 19 50~320
1~18 20 50~320





(T) (W) (L)
mm mm mm
1~18 21 50~320
1~18 22 50~320
1~18 24 50~320
1~18 25 50~320
1~18 26 50~320
1~18 28 50~320
1~18 30 50~320
1~18 32 50~320
1~18 35 50~320
1~18 40 50~320
1~18 30 50~320
1~18 32 50~320
1~18 35 50~320
1~18 40 50~320
1~18 45 50~320
1~18 50 50~320
1~18 55 50~320
1~18 60 50~320
