High Hardness Tungsten Carbide Strips For Woodworking Cast Iron Cutting Tool
Product Details:
| Place of Origin: | Zhuzhou，Hunan，China（mainland） |
| Brand Name: | Gold Sword |
| Model Number: | Tungsten Carbide Strips |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiate |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging 15 kg per carton |
| Delivery Time: | 25 days |
| Payment Terms: | TT |
| Supply Ability: | 80000 pcs per month |
|
Detail Information |
|||
| Product Name: | Tungsten Carbide Strips | Material:: | Tungsten Carbide |
|---|---|---|---|
| GS Grade: | RX10 / RX20 / RX10T / AB10 | Color:: | Gray |
| Size: | As Required | Finishing: | Fine Grain |
| High Light: | tungsten carbide flats,cemented tungsten carbide |
||
Product Description
Blade Sharpening Square Carbide Blanks , Customized Tungsten Flat Bar

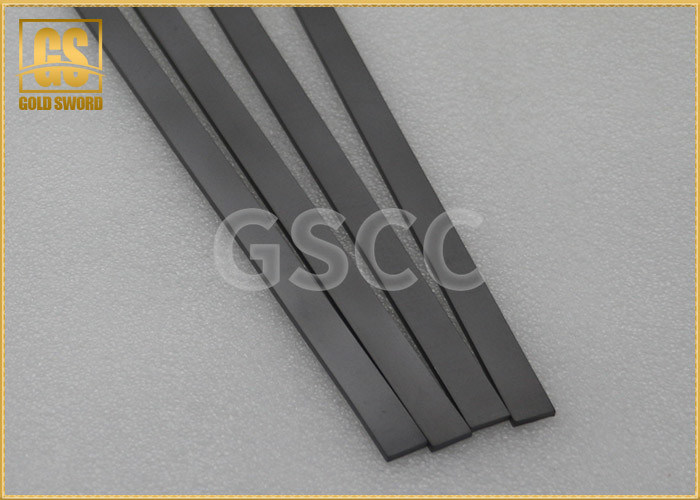

Introduction of Tungsten Carbide Strips
Tungsten Carbide Strips can be used for making the drill bits/ end-mills / reamers; automobile special cutters, printed circuit board special cutters, engine special cutters, horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can be also used for making of cemented carbide stamping head, core bar and perforation tools.
Applications of Tungsten Carbide Strips
Tungsten Carbide Strips is a highly efficient and green material, which features qualities of stainless steel: Corrosion resistance, oxidation resistance, wear resistance, bonding proof and acid-base resistance; And ensures its good strength, toughness, bending and stretching, impact resistance.
Tungsten carbide strip is used for woodworking cast iron cutting tool. It can be used in many field such as woodworking, machining of refractory alloys, stainless steel, high manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar, etc
Advantage of Tungsten Carbide Strips :
1. Over 10 Years' efforts in making high quality tungsten carbide bars and strips, Almost 8 years in doing importing and exporting business.
2. Rich experience in grade researching, mould designing, automatic press, HIP sintered, surface treating and quality control.
3. We have many years of experience in producing the Cemented Carbide Strips Blank tungsten carbide strips and have gained a wide reputation in the market . Welcome your inquiry anytime .
Note: Our company can produce alloy grades that are more suitable for special processing fields according to customer needs.
|
GSGrade |
ISO Grade |
Density (g/cm3) |
Hardness (HRA) |
T.R.S (MPα) |
Grain Size |
Performance & Application Recommended |
|
RX10 |
K20 |
14.6-15.0 |
90~90.5 |
2200~2400 |
Medium |
High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys. |
|
RX20 |
K30 |
14.6-15.0 |
90~90.5 |
2600~2800 |
Fine |
High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer. |
|
RX10T |
K10 |
14.6-15.0 |
92.5~93 |
1800-2000 |
Ultrafine |
High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering. |
|
AB10 |
K40 |
13.8-14.2 |
87.5~88 |
2800~3000 |
Coarse |
High toughness, difficult to break tooth. Special used for finger jointing tool. |
Production Line
We has a complete carbide production line,we are manufacturer, so we can control the goods quality
from raw material, production process, strictly quality inspection after finishing, also we have import
and export license, we can export to our customers directly, our foreign trade manager have above
10 years carbide experience, can understand customer’s requirement well and correctly.
