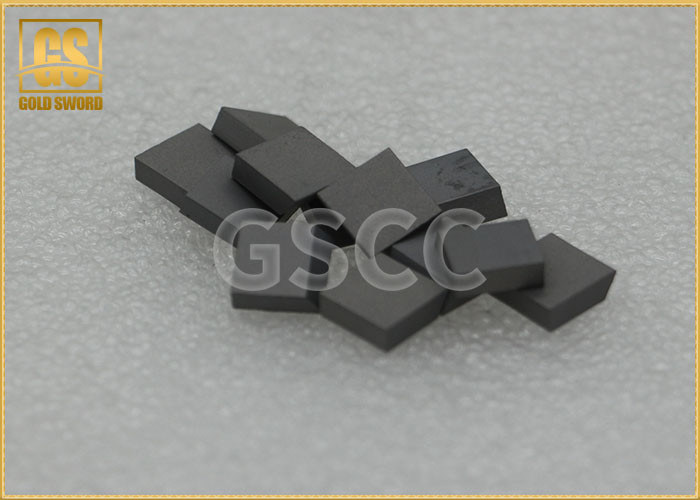

Impact Toughness Custom Tungsten Carbide Bar With 100% Virgin Raw Material
Product Details:
| Place of Origin: | Zhuzhou，Hunan，China（mainland） |
| Brand Name: | Gold Sword |
| Model Number: | Custom Tungsten Carbide Bar |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | Carton packaging 15 kg per carton |
| Delivery Time: | 25 days |
| Payment Terms: | TT |
|
Detail Information |
|||
| Item: | Custom Tungsten Carbide Bar | Color: | Gray |
|---|---|---|---|
| Grain Size: | Medium | Feature: | Impact Toughness |
| High Light: | tungsten carbide alloy,brazing carbide inserts |
||
Product Description
Impact Toughness Custom Tungsten Carbide With 100% Virgin Raw Material
Custom Tungsten Carbide features:
1. Made of 100% virgin raw material with submicron grain size;
2. Various grades can be chosen.
3. Proper surface treament to better performance.
4. With strict tolerance extent control, the tolerance can reach +/-0.01mm;
5. Full range of types and specifications available.
6. High wear resistance,high hardness and impact toughness;
7. HIP sintering and precision grinding to ensure the good performance
8. Both blank and finished are available
9. All raw materials are tested in terms of density, hardness and TRA and HV30 before use
10. Every piece of product goes through in-process and final inspection
11. Having very good mechanical &chemical stability;
12.High quality & reasonable price & fast delivery & best service.
Custom Tungsten Carbide Applications
Usually used for general wood cutters / hard wood cutters ,plastic and tobacco cutting
Production in a range of woodworking tools , plane, hop cutter ,sub-cutter etc
Our company use advanced molding process in order to produce various of strips /blanks to
Meet client’s requirements .
The Features and the uses of cemented carbide
| Mark | ISO standard |
Density g/cm³ |
Hardness HRA |
Bending strength ≥ MPa |
Grain size | Features and notice | use |
| RX20 | K05 | 14.5 | 91.2 | 2100 | fine | Comprehensive properties, high hardness and high strength alloys widely used in woodworking field | Suitable for all types of wood processing, also for the processing of metal and non-metal materials |
| RX10T | K10 | 14.5 | 91.8 | 1800 | fine | The cutting edge is sharp and the wear resistance is very good. It is easy to crack at high temperatures. It is recommended to use high frequency induction welding or automatic welding machine. | It is suitable for the cutting of high-density boards, high-fiber boards and particleboards for woodworking tools. It is also suitable for finishing and semi-finishing of cast iron, non-ferrous metals and alloys. |
| RX10 | K10 | 14.75 | 90.5 | 2200 | medium | Good wear resistance and impact resistance, resistance welding can be used. | It is used for impact-resistant and nail-proof cutting of dry wood, cork, mixed wood and cement board, and is suitable for all types of forming knives in the furniture manufacturing industry. |
| YG6X | K10 | 14.9 | 90.8 | 1950 | fine | Good abrasion resistance | It is suitable for machining cold hard cast iron and heat resistant alloy, also suitable for finishing common cast iron. It is used to make casing cemented carbide tools and wear resistant parts. |
| YG6 | K20 | 14.95 | 90.5 | 2000 | medium | It has good wear resistance and impact toughness. Resistance welding can be used, but the welding temperature should not be too high. | It is suitable for the processing of ordinary cutting wood saws, cast iron aluminum profiles and copper rods. |
| YG8 | K20 | 14.80 | 89.5 | 2000 | medium | It has good wear resistance and impact toughness. Resistance welding can be used, but the welding temperature should not be too high. | It is suitable for the processing of non-ferrous metal profiles, dry wood, cork and hardware tools. Suitable for making ordinary sawtooth, it can also be used to make wear parts, general holes and metal processing. |
| YG8Ak | K20 | 14.75 | 90.0 | 2200 | medium | Wear resistance and hardness are good, resistance welding can be used, but welding temperature should not be too high. | Suitable for the processing of hardwood and ordinary wood |
| YG8C | K30 | 14.75 | 88.5 | 2300 | thick | Good impact toughness | Suitable for artificial marble, common wood with weeds, weeds and thickets. |
About Us
Zhuzhou Gold Sword Cemented Carbide Co., Ltd. located in Zhuzhou city, Hunan province, which is the largest cemented carbide production and sales base in China. Our main products are carbide strips, carbide STB bars, carbide sand breaking strips, carbide ASA brazing tips, carbide cold heading dies and carbide rods. Our professional and technical personnel all have above 15 years of cemented carbide production experience, the rich experience can provide our customers of high-quality products and thoughtful technical support, and continuous improvement to meet customer needs.
We has a complete carbide production line,we are manufacturer, so we can control the goods quality from raw material, production process, strictly quality inspection after finishing, also we have import and export license, we can export to our customers directly, our foreign trade manager have above 10 years carbide experience, can understand customer’s requirement well and correctly.
