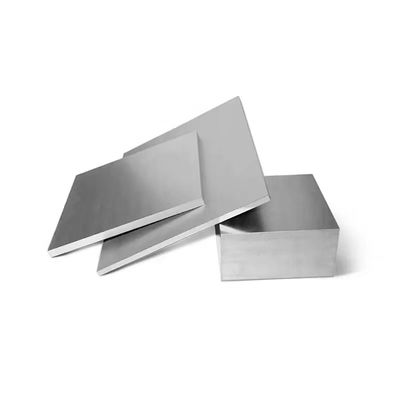

Durable Customized Size Tungsten Carbide Sheet For Cutting Tools
Product Details:
| Place of Origin: | Zhuzhou，Hunan，China（mainland） |
| Brand Name: | Gold Sword |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging 15 kg per carton |
| Delivery Time: | 25 days |
| Payment Terms: | TT |
|
Detail Information |
|||
| Usage: | Cutting Tools, Woodworking, Metal Working | Material: | Tungsten Carbide |
|---|---|---|---|
| Application: | Small Inserts, Cutting Tips, Wear Parts | Size: | Customized |
| Place Of Origin: | Hunan China | Brand: | Gold Sword |
| High Light: | tungsten carbide wear plates,carbide plate stock |
||
Product Description
| GSGrade | ISO Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPα) | Grain Size | Performance & Application Recommended |
| RX10 | K20 | 14.6-15.0 | 90~90.5 | 2200~2400 | Medium | High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys. |
| RX20 | K30 | 14.6-15.0 | 90~90.5 | 2600~2800 | Fine | High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer. |
| RX10T | K10 | 14.6-15.0 | 92.5~93 | 1800-2000 | Ultrafine | High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering. |
| AB10 | K40 | 13.8-14.2 | 87.5~88 | 2800~3000 | Coarse | High toughness, difficult to break tooth. Special used for finger jointing tool. |
All Products
Tungsten Carbide Strips
Carbide Wear Strips
Tungsten Carbide Bar
Tungsten Carbide Blanks
| Product Name: | Carbide Wear Parts | Material:: | Tungsten Carbide |
|---|---|---|---|
| GS Grade: | RX10 / RX20 / RX10T / AB10 | Color:: | Multi Functional |
| High Light: |
square carbide blanks,cemented tungsten carbide |
||
Multi Functional Carbide Wear Parts , Rectangular Tungsten Carbide Flat Bar
Carbide Wear Parts Introduction :
Carbide Wear Parts is a hard material composed of a metal matrix composite where carbide particles act as the aggregate and a metallic binder serves as the matrix. It is one of the most successful composite engineering materials ever produced. Its unique combination of strength, hardness and toughness satisfies the most demanding applications.
Tungsten carbide is used in machining tough materials such as cast iron or steel, as well as in situations where other tools would wear away, such as mining tools and wear parts. Most of the time, carbide will leave a better finish on the part,and allow faster machining. Carbide tools can also withstand higher temperatures than standard high speed steel tools.
Carbide Wear Parts Advantage
1. Superior heat stability.
2. Anti-deformation in high temperature.
3. Fine thermal shock resistance.
4. High thermal conductivity.
5. Excellent Oxidation control ability.
6. Strong anti-corrosion in high temperature.
7. Good corrosion resistance from Chemical.
8. High-wearing feature.
9. Long usage lifetime.
| GSGrade | ISO Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPα) | Grain Size | Performance & Application Recommended |
| RX10 | K20 | 14.6-15.0 | 90~90.5 | 2200~2400 | Medium | High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys. |
| RX20 | K30 | 14.6-15.0 | 90~90.5 | 2600~2800 | Fine | High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer. |
| RX10T | K10 | 14.6-15.0 | 92.5~93 | 1800-2000 | Ultrafine | High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering. |
| AB10 | K40 | 13.8-14.2 | 87.5~88 | 2800~3000 | Coarse | High toughness, difficult to break tooth. Special used for finger jointing tool. |
OEM/ODM
Rich Experience In OEM
We are in a position to accept orders against customers samples specifying design, specifications
and packaging requirements.
Various kinds of Packing box are for your choose.
OEM Packing box with your logo is not a problem.
Why choose us?
1. Strict quality control: all our cutting tools will be tested before shipping, the products you received are all with high quality.
2. Fast delivery: The normal and popular models are always in stock, shipment will be made very soon after you making payment.
3. Prompt response: Any of your inquiry to us, we will reply you within in 24 hours.
4. OEM & ODM accepted: We can produce tools as per your drawing.
5. Wide products ranges: Almost all kinds of cemented carbide products are in our supply scope, can meet your various needs from our one website.
