100% Virgin Solid Carbide End Mill HRC45 Hardness Corrosion Resistance
Product Details:
| Place of Origin: | ZHUZHOU |
| Brand Name: | Gold sword |
| Certification: | ISO9001 |
| Model Number: | can be customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | pcs |
| Packaging Details: | boxes, carton |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 30000pcs/month |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide Material | Coating: | AlTiN /TiAIN/TiSiN/Nano |
|---|---|---|---|
| Usage: | Machining Ferrous Metal,cnc Cutting Tools,Milling | Hardness: | HRC45/50/55/65 |
| Flutes: | 2/3/4/6 Flutes | Helix Angle: | 35/45 |
| High Light: | 100% Virgin Solid Carbide End Mill,Solid Carbide End Mill HRC45,Solid End Mill Corrosion Resistance |
||
Product Description

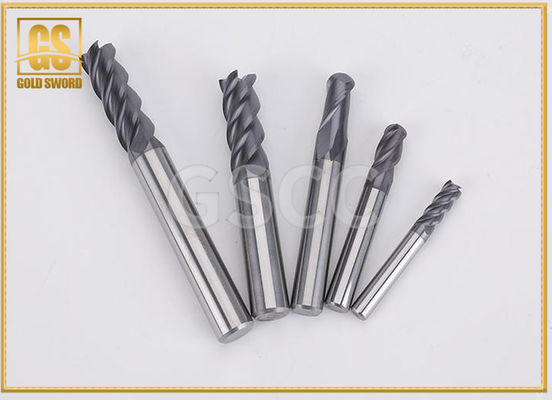

Carbide End Mills for metal cutting,solid round tools
Description of Carbide End Mills
| Item | Carbide End Mill | Brand | GW | Materials | tungsten carbide |
| Flutes | 2/3/4/6 flutes | HRC | 45/50/55/65 | Coating | AlTiN /TiAIN/TiSiN/Nano |
| Choice | square, ball nose, aluminum, corner radius, roughing, micro and long neck from 1T to 6T | ||||
| Helix Angle | 35/45 | Suitable materials | 45 steel, cast iron, tool steel | ||
| Suitable Machne | CNC center, Engraving machine, High speed machine, Grinding machine | ||||
| Unique sharp edge with 20 degrees back angle, to achieve the effect of shock absorption, cutting process stability. cutting process stability. The deep chip removal groove and the big spiral angle ensure the smooth chip removal. Using the new ultra-fine particle tungsten carbide rod with high hardness and strength which make the end mills in perfect performance. |
|||||
Coating Sheet
| AlTiN | TiAIN | TiSiN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Applicable
Applicable materials: steel, stainless steel, alloy steel, quenched and tempered steel, carbon steel, cast iron, heat-treated quenched steel.
The new ultra-fine tungsten steel substrate has high wear resistance and strength. As a versatile milling cutter, it is specially designed for high hardness and high speed cutting applications. The blade is covered with TiIN coating, which can directly perform high-speed rough machining on heat-treated materials below 45°. When performing fine machining, the number of tool changes is reduced and the machine is moved ahead of time, thereby saving manufacturing time and focusing on surface/side milling for fine cutting.
Detall Information
