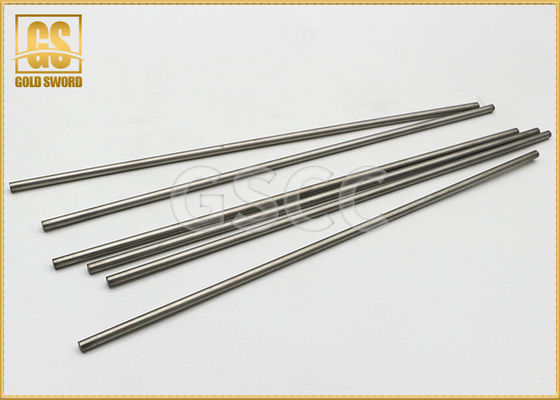

HIP Sintering Tungsten Carbide Rods , Tungsten Metal Rod Wear Resistant
Product Details:
Place of Origin: | ZHUZHOU |
Brand Name: | Gold sword |
Certification: | ISO9001 |
Model Number: | ¢1.2*100/330、¢1.6*90/100/330、¢1.8*90/100/330、¢2.1*100/330、¢2.5*100/330、¢3*100/330 |
Payment & Shipping Terms:
Packaging Details: | boxes, carton |
---|---|
Delivery Time: | 15-30 days |
Payment Terms: | L/C, D/A, D/P, D/P, T/T, T/T, Western Union |
Supply Ability: | 20000pcs/month |
Detail Information |
|||
Material: | 100% Virgin Raw Material | Free Sample: | Available |
---|---|---|---|
Surface: | Polished,Blanks Or Polished Grinding | Inch Size: | Acceptable |
High Light: | HIP Sintering Tungsten Carbide Rods,Tungsten Metal Rod Wear Resistant,HIP Sintering Tungsten Metal Rod |
Product Description
diameter 1.6/1.8/2.1/2.3/2.5/3.0 micro round rods for large inventory
Product description
Brand New Zhuzhou Gold Sword Service Tungsten rod. Perfect for resistance welding! Product has a ground finish and is manufactured via pressing and sintering. All are stress relieved and lot controlled. We can provide a material or ISO cert upon request. This Tungsten Copper meets international standards and is available for immediate, free shipping. It's perfect for machine shops, research and development, DIY'ers, and labs. Tungsten Copper is highly machinable and used extensively as a resistance welding electrode. WCo also has excellent electrical conductivity. Zhuzhou Gold Sword Tungsten Service is ISO certified and has been manufacturing tungsten for over 30 years!
1. 100% Virgin raw material
2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 10 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4. Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
5. Competitive price and fast delivery
Application of Cemented Carbide Rods Blank
1. For making carbide mold punches
2. For making carbide core pins
3. For making carbide dental burrs
4. For making carbide PCB drills, drills, end mills & hole drilling tools, boring bar
5. For making carbide reamers.
1. Grade: YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc.
2. diameter from 0.3mm~100mm,
3. length from 10mm~1000mm
4. tolerance for diameter (.-0.05~+0.05),tolerance for length (0~+0.2mm).
5. angles of tips are 30º,60º,90º
GRADE | ISO CODE | COBALT CONTENT | DENSITY | HARDNESS | TRS |
(%) | g/cm³ | HRA | N/mm² | ||
K10T | K05-K10 | 4.5-6.0 | 14.95-15.05 | 92.7 | 1800 |
YG8 | K30 | 8 | 14.8 | 89.5 | 2200 |
YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
YL10.2 | K30 | 10 | 14.5 | 91.8 | 2400 |
YG13X | K30-K40 | 13 | 14.3 | 89.5 | 2600 |
YG15 | K40 | 15 | 14 | 87.5 | 2800 |
Tolerance
TYPE D | Tolerance of diameter (mm) | Tolerance of length (mm) |
0.5~12 | 0.2~0.45 | 0~1.5 |
12.5~20 | 0.3~0.6 | 0~1.5 |
21~30 | 0.5~0.8 | 0~1.5 |
