Cutting Tools Tungsten Carbide Blade K10 / K20 / K30 110 - 280 M / Min

I'm Online Chat Now

Cutting Tools Tungsten Carbide Blade K10 / K20 / K30 110 - 280 M / Min

China Cutting Tools Tungsten Carbide Blade K10 / K20 / K30 110 - 280 M / Min supplier
Cutting Tools Tungsten Carbide Blade K10 / K20 / K30 110 - 280 M / Min supplier Cutting Tools Tungsten Carbide Blade K10 / K20 / K30 110 - 280 M / Min supplier

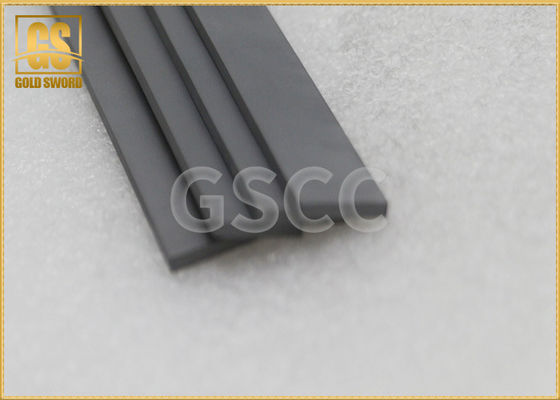

Large Image :  Cutting Tools Tungsten Carbide Blade K10 / K20 / K30 110 - 280 M / Min

Product Details:

Place of Origin: Zhuzhou,Hunan,China(mainland)
Brand Name: Gold Sword

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Carton packaging 15 kg per carton
Delivery Time: 25 days
Payment Terms: TT
Contact Now
Detailed Product Description
Size: OEM Acceptable Material: Tungsten Carbide
ISO Classification: M Mark: YBM151 / YBM251 / YBM351

Cemented carbide is an alloy material made from a hard compound of a refractory metal and a binder metal by a powder metallurgy process.
Cemented carbide has a series of excellent properties such as high hardness, wear resistance, strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance, which remains basically unchanged even at a temperature of 500 ° C. It still has a high hardness at 1000 °C.
Carbide is widely used as a tool material, such as turning tools, milling cutters, planers, drills, boring tools, etc., for cutting cast iron, non-ferrous metals, plastics, chemical fiber, graphite, glass, stone and ordinary steel, can also be used for cutting Hard-to-machine materials such as heat-resistant steel, stainless steel, high manganese steel, and tool steel.
Classification
Drag blades: used in non-powered tools such as UCT, KCT, VCT, SCT, C2
Particularly suitable for Foils, Paper, Thin folding carton, PVC,Plastic ,Carpet ,Light foam core etc.
Oscillating blades: used in EOT / POT oscillating tools.
Recommended materials: Folding carton, Gasket materials, Foam, Leather,Rubber, Felt,Woven , Textiles, Plastic etc.
Rotary blade: decagonal (ten-sided) blades for DRT / PRT tools.
Recommended for breathable materials such as textile, carbon fibre, glass fibre, etc.

Coating blade mark and use recommended



ISO classificationMarkusesCutting speed(m/min)
PYBC151High wear-resistant matrix and ultra-thick composite coating for steel finishing.180-460
YBC152220-550
YBC251A tough base with good edge safety and a coating of MT-TiCN for semi-finishing of steel.160-440
YBC252180-480
YBC351The highly plastic matrix and the composite thick coating are suitable for roughing of steel.130-380
MYBM151Suitable for finishing and semi-finishing of stainless steel.110-280
YBM251Suitable for semi-finishing of stainless steel.
YBM351Suitable for rough finishing of stainless steel.
KYBD052The chemical ultra-thick coating combines with a hard matrix to provide excellent wear resistance in high-speed dry cutting of grey cast iron.200-500
YBD102Chemically coated grade for high speed cutting of ball cast iron.200-480
YBD152Good anti-flaking, suitable formedium- and high-speed turning in cast iron, and can withstand slight interrupted cutting at medium speed.180-450
YBD252Suitable for turning in medium and low speed wet milling and intermittent conditions of cast iron with toughness requirements.150-380





Recommended cutting amount ( B04 )



Raw materialprocessing methodMarkCutting speed(m/min)
PsteelcYBC151180-460
YBC152220-500
semi finishmachiningYBC251160-440
YBC252180-480
rough finish machiningYBC351130-380
Mstainless steel

fine machining,

semi finish machining,

rough finish machining

YBM151

YBM251

110-280
Kcast ironfine machiningYBD052200-500
YBD102200-480
semi finish machiningYBD151180-450
YBD152190-450
rough finish machiningYBD252

150-380
