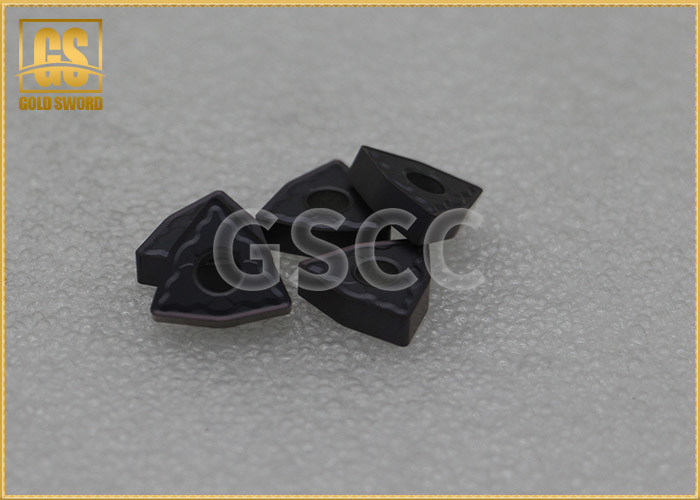

• High Hardness Tungsten Carbide Inserts For Cast Steel Heavy Duty Turning
High Hardness Tungsten Carbide Inserts For Cast Steel Heavy Duty Turning

High Hardness Tungsten Carbide Inserts For Cast Steel Heavy Duty Turning

Product Details:

Place of Origin: Zhuzhou,Hunan,China(mainland)
Brand Name: Gold Sword
Model Number: Tungsten Carbide Inserts

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Carton packaging 15 kg per carton
Delivery Time: 25 days
Payment Terms: TT
Get Best Price Contact Now

Detail Information

Grade: High Hardness Application: Cutting; Drilling
Material: Tungsten Carbide Type: CNC Indexable Inserts
High Light:

carbide cutting inserts

,

cemented carbide inserts

Product Description

High Hardness Tungsten Carbide Inserts For Cast Steel Heavy Duty Turning



Tungsten Carbide Inserts  Features:



1. Stable cutting edge, not easy broken. High accurancy.
2. Good chipbreaker for metal turning, removing chips smoothly.
3. Perfect turning surface of the workpiece.
4. Can be offered together with tool holders.



YG6 / YG8 : Suitable for the roughing pf cast iron and light alloys and also for the milling of cast iron and low-alloy steel

YW2 : Can be used fr the semifinishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs

YT14 : Suitable for the finishing and semifinishing of steel and cast steel.

YT5 : Suitable for the heavy duty rough tuming of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions

YS25 : It is special in using for the milling of steel and cast steel

YC30S : Used for the milling of steel ,cast steel and alloy steel.

YC40 : Suitable for the heavy duty turning of steel and cast steel with a big feel rate under unfavorable working condition.

YC45 : Suitable for the heavy duty turning of steel and cast steel with a big feel rate.also for face milling.



TYPE Dimension ( mm )
L I.C S d r
CNMA ( ISO ) ( ANSI )
90304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2



TYPE Dimension ( mm )
L I.C S d r
CCMT ( ISO ) ( ANSI )
60202 21.5 6.4 6.35 2.38 2.8 0.2
60204 21.51 6.4 6.35 2.38 2.8 0.4
09T304 32.51 9.7 9.525 3.97 4.4 0.4
09T308 32.52 9.7 9.525 3.97 4.4 0.8
120404 431 12.9 12.7 4.76 5.5 0.4
120408 432 12.9 12.7 4.76 5.5 0.8





TYPE Dimension ( mm )
L I.C S d r
CNMM ( ISO ) ( ANSI )
90304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2



Tungsten carbide insert 's grades and usages

Grade Density g/cm³ Hardness HRA T.R.S Mpa Applications ISO code
YG6 14.9 89.5 1670 Suitable for the roughing pf cast iron and light alloys and also for the milling of cast iron and low-alloy steel K15
YG8 14.6 89 1840 K20
YW2 12.9 90.5 1460 Can be used fr the semifinishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs M20
YT14 11.4 90.5 1400 Suitable for the finishing and semifinishing of steel and cast steel. P20
YT5 12.8 89.5 1560 Suitable for the heavy duty rough tuming of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions P30
YS25 13 90.5 1780 It is special in using for the milling of steel and cast steel P20
YC30S 12.9 90 1600 Used for the milling of steel ,cast steel and alloy steel. P30
YC40 12.9 91 2200 Suitable for the heavy duty turning of steel and cast steel with a big feel rate under unfavorable working condition. P35-P40
YC45 12.75 90 2300 Suitable for the heavy duty turning of steel and cast steel with a big feel rate.also for face milling. P40



Application Area



-Lathe tool holder : external turning ,boring , threading , grooving, cut-off .

-Carbide insert : turning, threading ,grooving ,milling .
