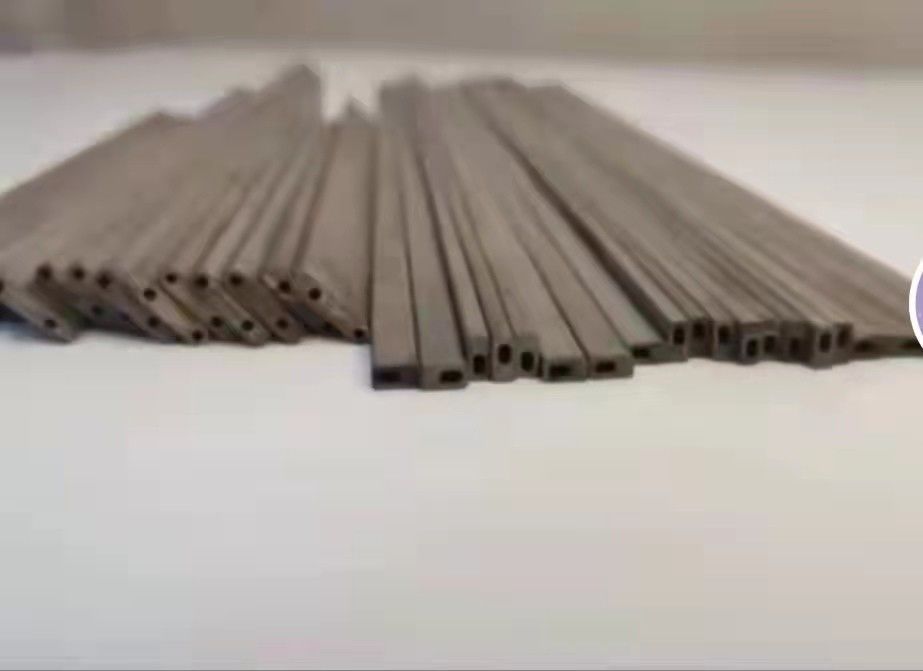

Perforated YG6 YG8 Tungsten Carbide Strips With Good Strength

Perforated YG6 YG8 Tungsten Carbide Strips With Good Strength

Product Details:

Place of Origin: ZHUZHOU
Brand Name: Gold sword
Certification: ISO9001
Model Number: customed

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: kilogramme/pcs
Packaging Details: In one carton or as your wish, plastic box, Neutral packing or per customers' request
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Material: 100% Virgin Raw Material,WC+CO Good Raw Material Grade: YS2T/YG6/YG8/YG15/YL10.2 Etc.
Service: ODM OEM,OEM&ODM Grain Size: Fine; Medium,0.8-6.0um
Shape: Strips;rectangle, Mode Size: Small And Superfine Size.
High Light:

YG8 Tungsten Carbide Strips

,

Perforated Tungsten Carbide Strips

,

YG6 Tungsten Carbide Strips

Product Description

   tungsten carbide strips with holes, super-hard and good strength

  •

  •   The perforated strip is a special-shaped non-standard part, the process flow is more complicated than the standard part, and it is difficult to form, and the rejection rate is high. It requires a higher standard production process.

  • Definition of cemented carbide

 Cemented carbide strips are mainly made by mixing WC tungsten carbide and Co cobalt powder through powder milling, ball milling, pressing and sintering by metallurgical methods. The main alloy components are WC and Co. The WC in carbide strips for different purposes The composition content of Co is not exactly the same, and the application range is extremely wide.

Cemented carbide strip is one of many materials, named after its rectangular plate (or square), also known as carbide strip.



Production technology

Pulverizing → formula according to application requirements → wet grinding → mixing → pulverizing → drying → sieving → adding forming agent → re-drying → sieving to obtain a mixture → granulating → pressing → forming → sintering → forming (blank) →Flaw inspection→Packing→Warehousing.



the advantages and application

Cemented carbide strips have the characteristics of high red hardness, good weldability, high hardness, and high wear resistance.

Mainly used in the production and processing of solid wood, density board, gray cast iron, non-ferrous metal materials, chilled cast iron, hardened steel, PCB, brake materials. When in use, you should select the carbide strip of suitable material according to the specific purpose.



Perforated YG6 YG8 Tungsten Carbide Strips With Good Strength 0





Produsts measurement



Uncommon Specifications
(T) (W) (L)   (T) (W) (L)
mm mm mm   mm mm mm
0.8~1.5 1.0 20~320   1.5~2.0 1.0 20~320
0.8~1.5 1.2 20~320   1.5~2.0 1.2 20~320
0.8~1.5 1.4 20~320   1.5~2.0 1.4 20~320
0.8~1.5 1.6 20~320   1.5~2.0 1.6 20~320
0.8~1.5 1.8 20~320   1.5~2.0 1.8 20~320
0.8~1.5 2 20~320   1.5~2.0 2 20~320
0.8~1.5 2.2 20~320   1.5~2.0 2.2 20~320
0.8~1.5 2.4 20~320   1.5~2.0 2.4 20~320
0.8~1.5 2.6 20~320   1.5~2.0 2.6 20~320
0.8~1.5 2.8 20~320   1.5~2.0 2.8 20~320





Each Grade Meterial's Application





GSGrade ISO Grade Density (g/cm3) Hardness (HRA) T.R.S (MPα) Grain Size Performance & Application Recommended
YG8 K20 14.6-15.0 90~90.5 2200~2400 Medium High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys.
YL10.2 K30 14.6-15.0 90~90.5 2600~2800 Fine High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer.
YG6X K10 14.6-15.0 92.5~93 1800-2000 Ultrafine High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering.
YS2T K40 14.5~14.6 87.5~88 2800~3000 Fine Contains a small amount of tantalum and niobium, high cobalt content, good toughness, good red hardness, suitable for processing and stainless steel.

Products process



Perforated YG6 YG8 Tungsten Carbide Strips With Good Strength 1

Perforated YG6 YG8 Tungsten Carbide Strips With Good Strength 2
