YG8 YG12 Cemented Carbide Strips For Plastic Pelletizing Hobs
|Place of Origin:||ZHUZHOU|
|Brand Name:||Gold sword|
|Model Number:||can be customized|
Payment & Shipping Terms:
|Minimum Order Quantity:||10pcs|
|Packaging Details:||boxes, carton|
|Delivery Time:||15-30 days|
|Payment Terms:||FOB, L/C, T/T|
|Type:||High Wear Resistance,Cutting Tool,any Types Are Avaliable||Material:||100% Virgin Tungsten Carbide,WC+CO Good Raw Material|
|Application:||Metal Wood Cutting,End Mill.cutting Tools||Grade:||YL10.2/YG12/YG8/YS2T/YG15 Etc.|
|Product Name:||Hard Metal Strip,flat Bars Sheets Tungsten Carbide Strips,Hot Selling Tungsten Cemented Carbide Flat Bars Alloy Strips||Surface:||Polished,Uncoated,Blanks Or Polished Grinding,Blank(Unground)|
|Feature:||High Performance Cutting,Wear Resistance||Chemical Composition:||WC+CO+TaNb|
|Shape:||Tungsten Carbide Strip,Customized,Long Strip Bevel|
YG12 Cemented Carbide Strips,
Cemented Carbide Strips For Plastic Pelletizing,
Cemented Carbide Strips Wear Resistance

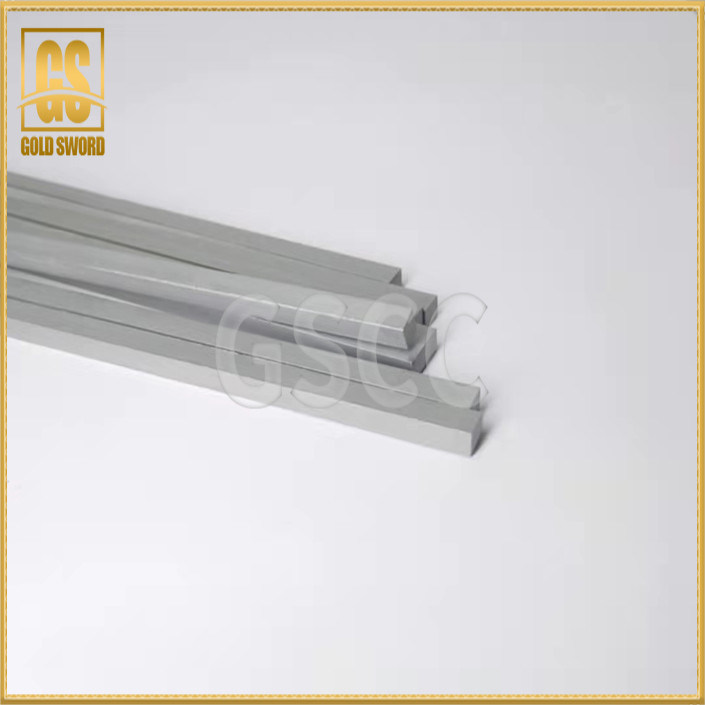

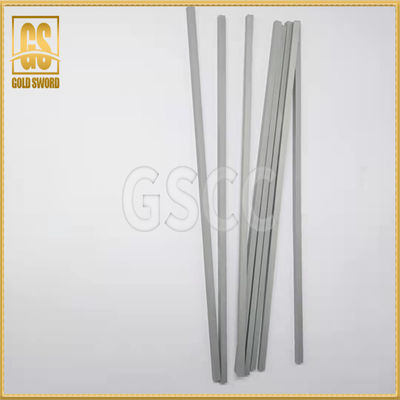

Carbide strips for plastic pelletizing hobs, 3*7with lengths ranging from 120, 140, 160, 200, 230, 236, and 340.
About cemented carbide:
Cemented carbide is an alloy material made of refractory metal compounds and bonding metals through powder metallurgy.
Cemented carbide has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, heat resistance and corrosion resistance, etc.
Especially its high hardness and wear resistance, even at the temperature of 500 ℃, it remains basically unchanged, at 1000 ℃
Still very high hardness.
Cemented carbide is widely used as tool materials, such as turning tools, milling cutters, planers, drills, boring cutters, etc., for processing wood,
For cutting cast iron, non-ferrous metals, plastics, chemical fibers, graphite, glass, stone and ordinary steel, it can also be used for cutting
Cutting difficult-to-process materials such as heat-resistant steel, stainless steel, high manganese steel, tool steel, etc.
Tungsten Carbide Strips with high wear resistance for machining cast iron,YG8,YG12,YL10.2,YS2T
- HIP sintering,have excellent wear resistance,good impact resistance,high bending strength.
- Widely used for producing various kinds of motors,electronic progressive and punching dies.
- Strip can be used for machining refractory alloy,hard wood,aluminum section bar,brass rod and cast iron.
- Available OEM and ODM services.
GSgrade Co(%) Density (g/cm²) N/mm² HRA Application Recommended YG6 8 14.75 ≧1600 ≧90 Good wear resistance, high strength, Suitable for normal stress conditions.Used for processing alloy balls, valve cores, valve seats, tops, sealing rings, mechanical accessories, etc. YG6X 6 14.95 ≧1500 ≧91 YG6A 6
≧1800 ≧92 YG8
14.50 ≧2000 89.5 Common wear-resistant parts, used on the TC bearings, drill collars, stabilizers, joints, crossovers,fishing tools and other equipment. YG9C 11 14.40 ≧2100 88.1 Wear-resistant parts with strong impact, suitable for nozzles and water spray sleeves for PDC bits and roller cone bits. YG11C 15 14.00 ≧2200 87 Good wear resistance, good impact resistance, suitable for the production of petroleum, chemical, mechanical industries and high-pressure nozzles,etc. YG11 11 14.2 ≧2100 87.5 YG15 15 87 ≧2400 87 Good strength and suppression performance, suitable for making high-pressure nozzles and instruments in petroleum, chemical and mechanical industries. YG15C 15 86.5 ≧2450 86.5 YN6 6(Ni) 14.85-14.95 ≧2500 90.5 Non-magnetic, good wear resistance, good corrosion resistance, suitable for submersible pump parts, mechanical accessories, etc. YT535 10 12.8-12.95 ≧2500 91 Contains a large number of Ta and Nb carbide, gravity milling, open-window milling casing, etc., good alloy red hard. YS2T 10 14.4 ≧2100 91.5 Ultrafine particles, containing a small amount of tantalum and niobium, suitable for milling of stainless steel, alloy steel and ferroalloy, with good cutting effect.
The hob of the granulator is used to cut plastic pellets, and the cemented carbide hob speeds up the granulation speed, and the particles are uniform and beautiful and have a long service life.
All of our packages are kind of inner package to ensure the products won’t get damaged each other.
Firstly,packed in small box fixed with cotton or foam.Then packed in a big carton or use wood carton box if it is needed.
Packed as per client requests.
1.Strong R&D team. Professional engineers serve for clients, recommend product and grades as per your applications. We also offer after-sale service.
2. Strong Mould R&D team. We support product customization as per requirements, ensure high working efficiency with good quality.
3. Successful cooperation case: We cooperate with clients in domestic and abroad, and get good feedback from them.
We have powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops and physical and chemical labs for inspection. We have hundreds of updated equipments to make sure month capacity 50 tons and excellent quality.
