Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy

Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy

Product Details:

Place of Origin: ZHUZHOU
Brand Name: Gold sword
Certification: ISO9001
Model Number: 0.06×6×6 inch 200*200*5/6mm 100*100*1.2mm

Payment & Shipping Terms:

Minimum Order Quantity: 1kg
Price: kilogramme
Packaging Details: boxes, carton
Delivery Time: 15-30 days
Payment Terms: FOB, L/C, T/T
Supply Ability: 30000pcs/month
Get Best Price Contact Now

Detail Information

Type: Power Tool Parts,High Wear Resistance Material: 100% Virgin Tungsten Carbide
Application: For Semiconductor Silicon Inner Groove Inlaid Alloy. Surface: Polished,Grilling.
Size: Customer's Request Advantage: High Wear Resistance,Excellent Wear Resistance And Hardness
Name: Cemented Carbide Sheet,Tungsen Carbide Plate.Tungsten Block.Tungsten Square Service: ODM OEM
Density: 14.3-14.95g/cm3 Hardness: HRA87-HRA92.5
Chemical Composition: WC+CO Tolerance: Blank Flat Bend 0.05, Side Bend 0.05, Ground Parallel 0.01mm,flatness 0.01mm,thinkness0~-0.02mm
High Light:

Tungsten Carbide Steel Sheet 1.2mm

,

HRA87 Tungsten Carbide Steel Sheet

,

Semiconductor Silicon Tungsten Carbide Plate

Product Description

 High light And High Precision Tungsten Steel Sheet Carbide 100*100*1.2mm, Thickness Tolerance 0~-0.02mm Mass Production for Semiconductor silicon inner groove inlaid alloy.



Tungsten carbide plates, have high hardness, wear-resistance, and resistance to bending. They're widely used in Semiconductor silicon inner groove inlaid alloy.cutting tool, crusher, wear parts, moulding base and other fields. We provide various size, such 154.2*154.2mm*1.52mm, 20*20mm,50*50mm, 100*100mm, 200*200mm, and your customized sizes are welcomed.



Tungsten sheets can be used to make: electrodes, heat elements, heat shield, Boats for electronics, and vacuum furnace.

1. tungsten are mainly used in metallurgy industry, mechanism process industry and rare earth smelting industry;

2. They are more frequently used in crystalloid materials and other burgeoning high-tech industries;

3. The tungsten should be used in vacuum or deoxidize atmosphere and the highest using temperature should be no more than 2000ºC.



Application scope of tungsten steel sheet:
1. Used to make blanking dies. High-speed die and multi-station progressive die used for blanking copper, aluminum, stainless steel, cold-rolled sheet, EI sheet, Q195, SPCC, silicon steel sheet, hardware, standard parts, upper and lower punches, etc.



2. Used to make knives. Such as woodworking industry knives, plastic crushing knives and so on.
3. For making high temperature resistant parts, etc. Such as the guide rail of the machine tool, the anti-theft reinforcement board of the automatic teller machine, etc.
4. Used to make chemical industry parts.
5. The material properties of cemented carbide sheets for different purposes are not consistent. When using, a cemented carbide sheet of suitable material should be selected according to the application.



Tungsten carbide plate description

1, the purity of more than 99.95% of raw materials, impurities, less physical properties of the plate more stable;

2, the use of spray drying technology, the material in the fully sealed conditions using high purity nitrogen protection, effectively reduce the mixing process in the preparation of the possibility of oxygen, better purity, the material is not easy to dirty;

3, the density of the plate uniform: 300Mpa isostatic pressing machine to suppress, effectively prevent the production of defects, the plate density is more uniform;



Tungsten carbide plate Aplication and Characteristics

GSGrade

ISO Grade

Density (g/cm3)

Hardness (HRA)

T.R.S (MPα)

Grain Size

Performance & Application Recommended

RX10

K20

14.6-15.0

90~90.5

2200~2400

Medium

High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys.

RX20

K30

14.6-15.0

90~90.5

2600~2800

Fine

High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer.

RX10T

K10

14.6-15.0

92.5~93

1800-2000

Ultrafine

High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering.

AB10

K40

13.8-14.2

87.5~88

2800~3000

Coarse

High toughness, difficult to break tooth. Special used for finger jointing tool.





1, the tungsten carbide plate with fine compactness, strength and hardness indicators are in line with the standard: the use of low-pressure sintering technology, so that the pores within the plate to be effectively eliminated, the quality is more stable.

2, the use of cryogenic treatment technology, so that the internal microstructure of the plate to be improved, the internal stress can be greatly reduced, effectively avoid the plate in the cutting process of the possibility of cracks generated;

    products profile

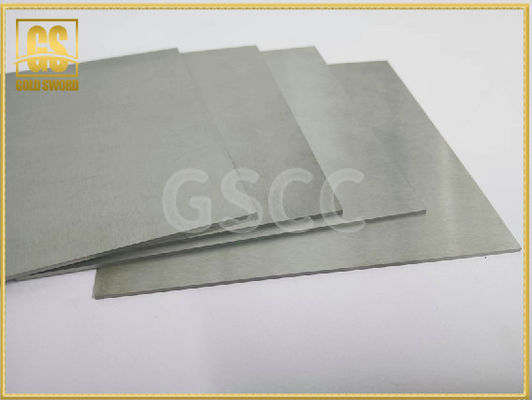

                                  Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy 0

                                  Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy 1

                                  Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy 2


               Production Process


                             Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy 3
           Production workshop
                             Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy 4
         Plates  Packing
                             Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy 5
                             Tungsten Carbide Steel Sheet 100*100*1.2mm For Semiconductor Silicon Inner Groove Inlaid Alloy 6
