• High Hardness Tungsten Carbide Blanks For Wood Cutter Tools Customized Size
High Hardness Tungsten Carbide Blanks For Wood Cutter Tools Customized Size

High Hardness Tungsten Carbide Blanks For Wood Cutter Tools Customized Size

Product Details:

Place of Origin: Zhuzhou,Hunan,China(mainland)
Brand Name: Gold Sword
Model Number: Tungsten Carbide Blanks

Payment & Shipping Terms:

Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: Carton packaging 15 kg per carton
Delivery Time: 25 days
Payment Terms: TT
Get Best Price Contact Now

Detail Information

GS Grade: RX10 / RX20 / RX10T / AB10 Application: Wood Cutters / Hard Wood Cutters
Color: Grey Name: Tungsten Carbide Blanks
High Light:

solid carbide blanks


carbide insert blanks

Product Description

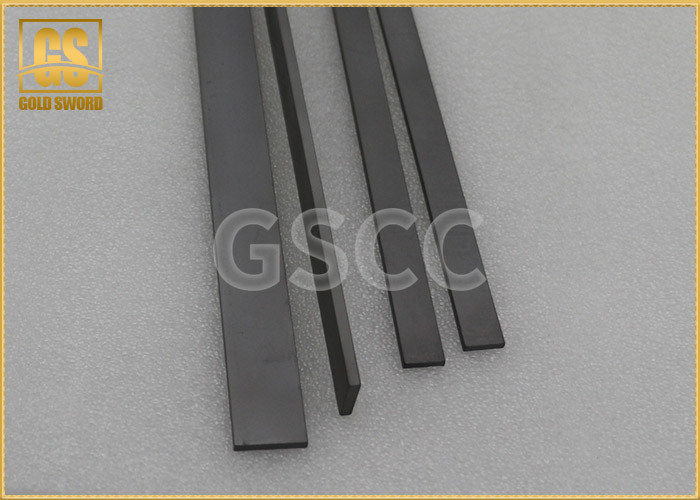

High Hardness Tungsten Carbide Blanks For Wood Cutter Tools Customized Size


Tungsten Carbide Blanks Information


1, pure tungsten carbide material,material code yg6 yg8,ywn,recycling material is available

2, size:length limited crabide to 400 mm,width limited to 400mm,thickness above 2mm

3, manufacturering carbide products includingTC ball,bar material,wortle,strips,tips,dies,milling cutters,scraper blades,rods

4, OEM , factory price,manufacturing irregular shape according to your drawing


Tungsten Carbide Blanks has a series of excellent properties such as high hardness, wear resistance, strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance, even at temperatures of 500 ° C. It remains essentially unchanged and still has a high hardness at 1000 °C.


RX10 High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys.

RX20 High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer.

RX10T High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering.

AB10 High toughness, difficult to break tooth. Special used for finger jointing tool.


Advanced production equipment and unique manufacturing technology to achieve stable quality and short delivery cycle.
Perfect process and ISO9001 quality certification system to ensure product control lability and stability.
Adapt to market demands, develop new materials and optimize product performance.



Size Tolerance Size Tolerance Size Tolerance
1~3 0~+0.3 4~6 0~+0.2 5~30 0~+0.5
3~5 0~+0.4 6~10 0~+0.3 30~60 0~+1
5~8 0~+0.5 10~15 0~+0.4 60~100 0~+1.5
8~12 0~+0.8 15~20 0~+0.5 100-150 0~+2
12~15 0~+1 20~25 0~+0.8 150~200 0~+2.5
>15 0~+1.2 25~30 0~+1 200~250 0~+3
    30~40 0~+1.5 250~300 0~+4
    40~50 0~+2 300~350 0~+5
    50~80 0~+3 350~450 0~+8
    >80 0~+5 >450 0~+10
1,The deformation amount of the plane of ordinary specifications is no more than 0.3mm, and that of the side is no more than 0.5mm
2,Thickness <2MM, width BBB 0 20MM, lateral deformation less than or equal to 1MM




Q: Do you set an MOQ and any discounts could be offered?
A: Don't worry! We don't have an MOQ and no matter how many you want to order is ok with us. But more quantity with more discount.

Q: Can this kind of products be customized?
A: Yes, we offer custom-made service for our clients. You just need to provide us some technical data such as dimensions.

Q: How long will you deliver the goods after I place an order?
A: We will send the items within 7 days once your payment is completed. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your products is inspected.

Q: What's the warranty of the products?
A: If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.
